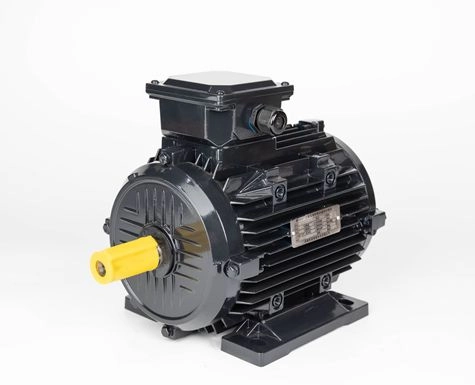

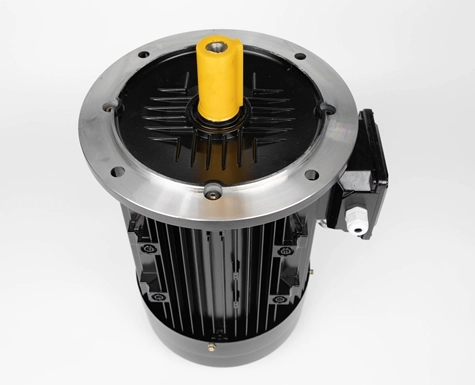

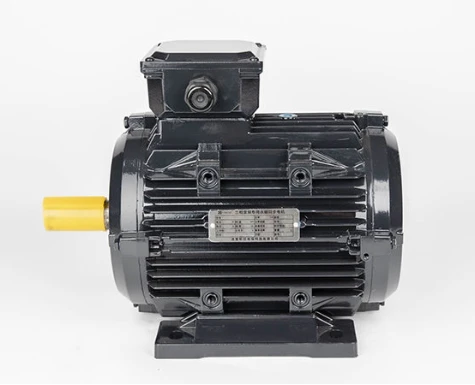

Frequency Controlled PMSM 5.5kW-132kW
Customizable Parameters
  • Project Specifications
  • Power range 5.5kW–132kW
  • Rated speed 1500rpm
  • Frame size 112mm-280mm
  • Shell material Aluminum or cast iron
  • Protection grade IP55
  • Insulation grade F
  • Installation mode B3, B5, B35, B14
Product Description

Featured by fully-sealed and self-cooling structure and fitted with independent fans,our Frequency control 3-phase permanent magnet synchronous motor can use the customized frame,F insulation,S1 working duty and IP55 shell protection grade.

Powered by frequency converter,this series product has rated voltage of 380VAC or meets customer's requirements.It will enter constant-torque running under the rated frequency,or enter constant-power running above the rated frequency.

This series product can fully replace the Y2 and Y3 series low-voltage asynchronous motors,and be widely applied in the enterprises of petrochemical mining,textile and others,to drive the machines such as fans,pumps,compressors and belts.

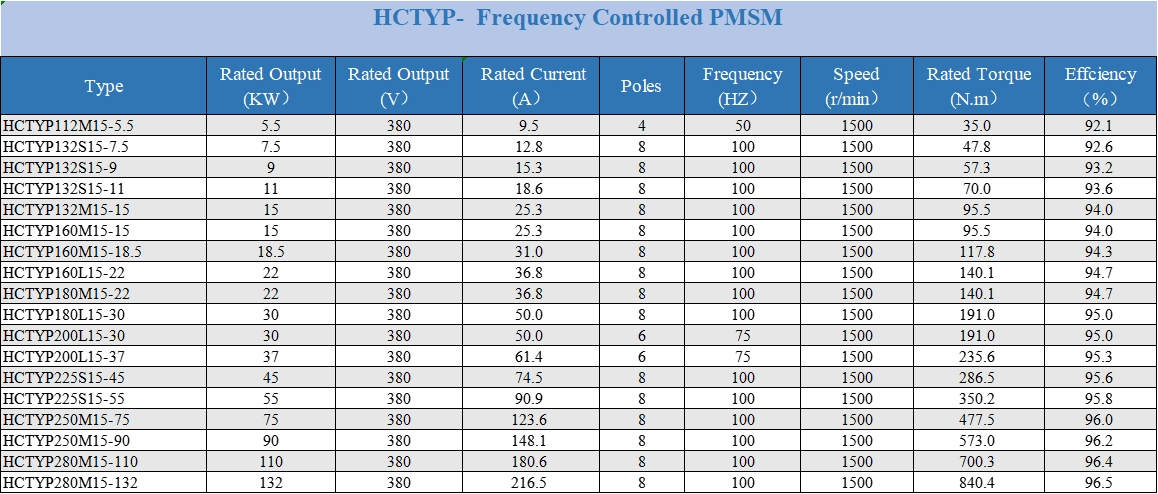

permanent magnet motor product categories 7.jpg

Advantages of PMSM

The permanent magnet motor consists of stator, rotor, bearing device, end cover, junction box, fan/fan cover, in which, the stator is a fixed part of motor and consists of one stator core, base and 3-phase field winding. The rotor, as the revolving part of motor, is mounted with permanent magnet poles. Hiest provides customers with a series of standard and customized permanent magnet synchronous motors which have the following characteristics compared with the traditional asynchronous motors:

  • 和创

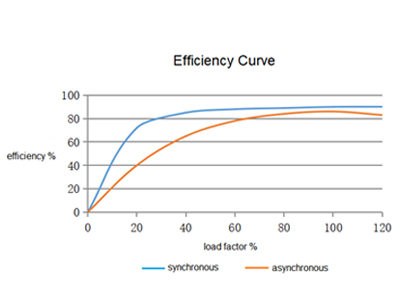

    High efficiency: Efficiency index of HCTY/HCTYP series permanent magnet motor is over 92%, reaches National Class 1 and it is superior than the EU IE4 (motor efficiency level in 2017) standard.
  • 和创

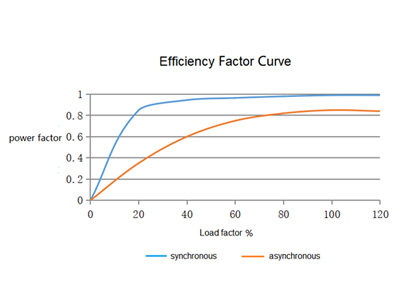

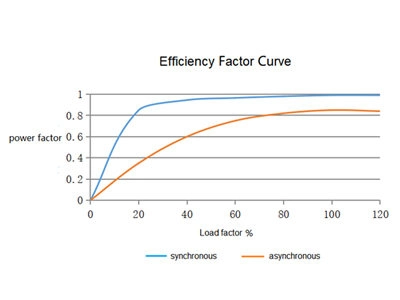

    High power factor: As for HCTY/HCTYP series permanent magnet motor rotors, they are free for induced current excitation, while the stator winding has resistive load; the motor has high power factor when it is running between the 1/4 load and rated load. The power factor at rated point is close to 1.
  • 和创

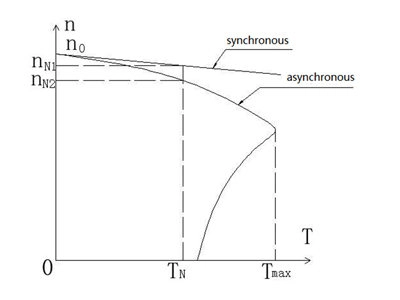

    Wide range of speed adjustment: The motor speed is strictly in direct proportion with frequency; the variable-frequency speed adjustment accuracy is very high and the width can reach 1:1000, while the asynchronous motor is just 1:100. Others: Small size, light weight, low material consumption, noise and temperature rise; simple structure and reliable running.
